Nvidia NVS 510

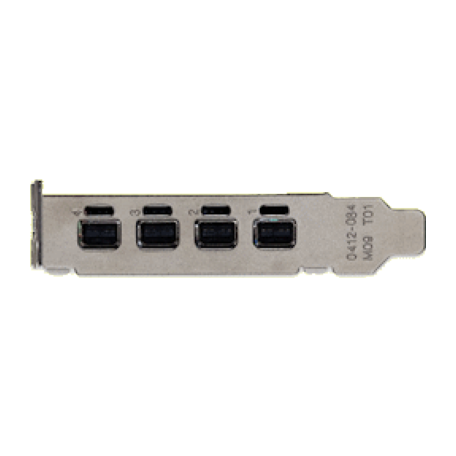

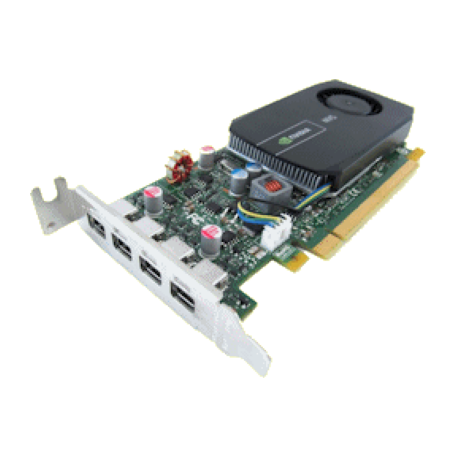

Nvidia Quadro NVS 510 PCI-express Quad-Head grafische kaart met 2GB GDDR3 SDRAM geheugen. Wordt bulk in antistatische verpakking geleverd.Voorzien van 4x mini DisplayPort connectoren op een low-profile slotbracket.

Reliably visualize any data across four displays with the energy.efficient NVIDIA NVS 510 business graphics solution.

The NVIDIA® NVS™ 510 offers the latest in graphics and display technologies along with industry-leading, multi-display management capabilities in an energy efficient, low-profile form factor. This makes it the ideal graphics solution for professionals who need to efficiently visualize and digest a great deal of information in the financial trading, command and control, and digital-signage markets.

Four ultra-high resolution display outputs in Low-Profile (LP) form factor
The NVIDIA NVS 510 features four compact mini DisplayPort connectors with a custom built-in retention mechanism, delivering ultra-high resolutions up to 3840x2160 @ 60 Hz. Plus, it supports advanced DisplayPort 1.2 features like Multi Stream Technology and Stream Cloning¹, which enables efficient cable management, as well as cost-effective multi-display installations.

High-speed 2GB graphics memory and power-efficient performance
The NVS 510 is the ideal graphics solution, giving you the optimal balance of performance, form factor, and power efficiency to drive up to four displays natively. The NVS 510 also leverages the latest NVIDIA Kepler™ GPU technology and 2GB of dedicated high-performance graphics memory. This enables it to efficiently deliver over 3x greater performance over previous-generation NVS solutions without increasing overall power consumption.

Simplified enterprise-wide deployment and management
Along with NVIDIA’s Unified Driver Architecture (UDA) and suite of enterprise management tools, the NVS 510 offers a highly reliable solution for seamless wide-scale deployment and simplified resource management. The NVS 510’s ultra-quiet active-cooling technology and low-profile form factor give IT administrators the freedom to fit multiple NVS 510 cards into space- and power-constrained systems or existing installations.

• Quad Display SupportThe all-new NVS 510 display engine drives up to four displays simultaneously and fully supports the next generation DisplayPort 1.2 standard capable of resolutions up to 3840x2160 @60 Hz. When used with the NVIDIA nView® Desktop Software utility, this makes it easy to deploy multiple displays across a desktop or build an expansive digital-signage wall.
• DisplayPort 1.2 FeaturesThe integrated DisplayPort 1.2 engine produces crisp image quality while driving ultra-high-resolution panels (up to 3840 x 2160 @ 60 Hz). NVS 510 also supports advanced DisplayPort 1.2 features like multi-stream technology (MST) and stream cloning. MST lets you drive up to four independent displays simultaneously from any one display port output, while stream cloning enables NVS 510 to clone up to four instances of each display output to drive a maximum of 16 displays.
• NVIDIA Enterprise Management ToolsExhaustive enterprise-management tools maximize your system uptime by enabling seamless widescale deployment. This allows remote query and control of graphics and display settings for systems spread across installations.

Specificaties:

• Geschikt voor Low-Profile PCI-Express 2.0 x16 sloten (Full-Height bracket NIETmeegeleverd)
• Geheugen: 2GB DDR3 op 480MHz
• Geheugeninterface: 128-bit
• Geheugenbandbreedte: 28.5GB/sec
• Externe aansluitingen: 4x mini DisplayPort (mDP)
• Verloopkabels van mini DisplayPort naar DisplayPort worden NIETstandaard meegeleverd
  (je kunt deze eventueel onderaan dit item direct meebestellen)
• De DisplayPort outputs kunnen tot vier digitaal aangesloten monitoren aansturen op resoluties tot 3840x2160bij 60Hz (ook wel Ultra-HD 4Kresolutie)
• Via alternatieve verloopkabels kunnen ook worden aangestuurd:
• DisplayPort naar DVI-D (Single Link): DVI schermen bij resoluties tot en met 1920x1200 @ 60 Hz
• DisplayPort naar DVI-D (Dual Link): DVI schermen bij resoluties tot en met 2560 x1600 @ 60 Hz
• DisplayPort naar HDMI: HDMI schermen bij resoluties tot en met 1920 x1080 @ 60 Hz
• DisplayPort naar VGA: analoge (VGA) schermen bij resoluties tot en met 1920x1200 @ 60 Hz
  Vraag een verkoper van That's IT! naar de mogelijkheid van het leveren van (een mix van) alternatieve kabels!
• Digitale audio over DisplayPort en HDMI wordt ondersteund
• Maximaal stroomverbruik: 35W
• Ondersteuning voor Shader Model 5.0 (OpenGL 4.3, DirectX 11)
• Geschikt Microsoft Windows 10, Microsoft Windows 8 (64-bit en 32-bit), Microsoft Windows 7 (64-bit en 32-bit), Microsoft Windows Vista (64-bit en 32-bit), Microsoft Windows XP (64-bit en 32-bit) en Linux® (volledige OpenGL implementatie, compleet met NVIDIA en ARB extensions, 64-bit en 32-bit)
